Medical Syringe Making Machine Manufacturer-Haijiang Factory Local at Ningbo,China.
Syringe Production line Included Below machines:
1.syringe injection molding machine
2.Syringe assembling machine
3.Syringe Printing machine
4.Syringe Packing Machine
5.Ethylene Oxide Sterilizer machine
The best solutions for making disposable syringe. Turnkey solutions, best price.
Syringe size range: from 1ml,2ml,3ml,5ml,10ml,20ml,30ml,50ml and 60 ml.related machine is syringe injection molding machine,syringe assembling machine,syringe screen screen printing machine and syringe packing machine.
1). 140 tons injection moulding machine for disposable syringes ,Plastic syringe making machine
| Item | unit | HJF140 |
| Clamping force | kn | 1400 |
| Shot Weight | g | 236 |
| Space between tie bars | mm | 420*420 |

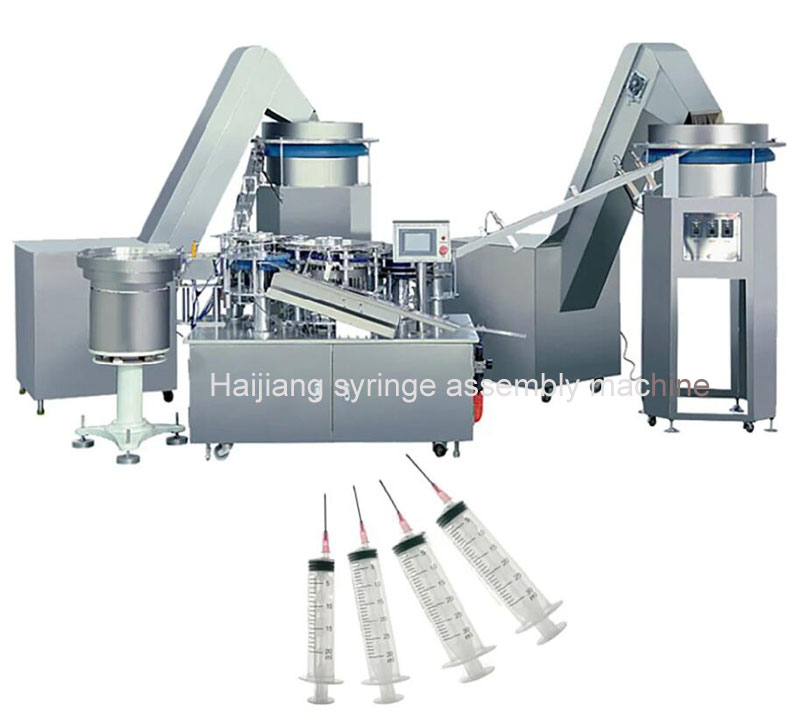

2).syringe assembly machine
| Assebling range | 1ml,2-3ml,5ml,10ml,20ml,30ml,50ml |
| Assembling speed | 120pcs-250pcs/minute |
| Input power | 220v50hz |
| Machine size | 490cm*230cm*210cm |
| Power | 2.5kw |
| Weight | 1500kgs |
| Air pressure | 0.2-0.4Mpa |
3).Syringe screen printing machine (vibrating Type)
| Printing range | 1ml,2ml,5ml,10ml,20ml,60ml |
| Printing speed | 80-120pcs/min |
| Input Power | 220V 50HZ |
| Machine size | 250cm*180cm*220cm |
| Power | 2.5kw |
| Weight | 600kg |
| Air Pressure | 0.2-0.4Mpa |
4). Syringe Blister packing machine (hard or soft plastic)
| packing range | 1ml,3ml,5ml,10ml,20ml,30ml,50ml |
| packing speed | 130pcs-310pcs per minute |
| Input power | 380V50HZ |
| machine Size | 720cm*110cm*180cm |
| machine Power | 14kw |
| Weight | 1750kgs |
| Air Pressure | 0.6-0.7Mpa |
5. Ethylene Oxide Sterilizer
Feature:1).Meets the requirement of EN1422 Standards
2).Volume Of inner container:1,3,6,10,15,20,30,100 CBM
3).Whole Process automatic control by Computer(Two-level control):industrial computer+SIEMENS PLC
4).Automatic door opening and closing (shifting type),Automatic air-inflation sealing
5).Automatic control of the entire Sterilizing process;
6).Automatic alarming and safety protection.
| Parameter | Unit | HJF140-F5 | ||
| Screw diameter | mm | A | B | C |
| 38 | 42 | 45 | ||
| Screw I/D ratio | L/D | 22.1 | 21.6 | 19.5 |
| shot volumn (theoretical) | Cm3 | 215 | 263 | 302 |
| injection weight(PS) | g | 193 | 236 | 271 |
| injection rate | g/s | 94 | 105 | 135 |
| injection pressure | Mpa | 205 | 159 | 140 |
| screw speed | r/min | 0~220 | ||
| clamp force | KN | 1400 | ||
| opening stroke | mm | 380 | ||
| space between tie bars (W*H) | mm | 420*420 | ||
| max mould height | mm | 450 | ||
| min mould height | mm | 170 | ||
| ejector stroke | mm | 120 | ||
| ejector force | KN | 33 | ||
| ejector number | PC | 5 | ||
| max pump pressure | Mpa | 16 | ||
| pump motor power | KW | 11 | ||
| heating power | KW | 7.2 | ||
| machine dimension | M | 4.2*1.2*1.7 | ||
| machine weight | T | 4.2 | ||
| oil tank capacity | L | 230 | ||
As a disposable syringe manufacturing machine suppliers from china,we can offer full production line for you. save your much time.
Any questions, welcome to contact us, we ill be always help you and support you.
- May I know how soon I can get the machine after I transfer the deposit?
Re:Usually, if the quantity is less than 5 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible. - How long the product warranty period?
Re:The product warranty period is 12 months. How long have you engaged in this industry?
Re:We have been engaged in this industry for more than 20years, Our hot products sold at home and abroadby our own foreign trade department and some trading company.
- What kinds of Processing equipment you have?
Re:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
